Acoustywall - Polysorb Wall Panels

Acoustywall - Polysorb Wall Panels

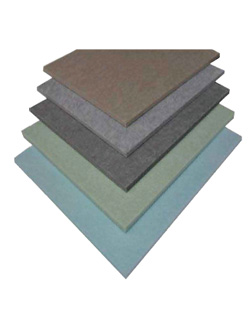

The Polysorb, polyester acoustic panel and polyester panel Acoustic Wall Panel is a high performance and durable sound absorptive product. Installation of Polysorb Acoustic Wall Panel is very convenient and can be even completed by inexperienced labor and create visually striking interiors with superior acoustic performance.

Composition

Polysorb polyester acoustic panel and polyester panel, Acoustic Wall Panel is made from polyester short fiber. It is prepared by needle punching on multi folded polyester fabric sheets or polyester acoustic panel and polyester panel(arranged by carding process). The final polyester panel material consists of a three dimensional network structure with breathable open cells.

Physical Properties

Thickness:	9 mm
Dimension:	1200 mm X 2400 mm
Density:	237 kg/m3 (Testing method: ASTM D 1752)

Polysorb Acoustic Wall Panel is lightweight and flexible along with excellent tension/compression stiffness.
The tile maintains its dimensions in high humidity and temperature.
The color of the tile maintained even in long term exposure to sunlight (over 4th grade in 240 is at 100°C).
The surface of the acoustic polyester panel material tile is resistant to surface wetting (rate of resistance to surface wetting: 99.6%)therefore inhabitation of various germs and molds is inhibited.
Furthermore, the panel can be easily cut into any desired shape.

Sound Absorption

The Polysorb Acoustic Wall Panel can attain a maximum NRC of up to 0.60

The absorption coefficient over important speech frequencies are as follows

Frequency (Hz)	250	500	1000	2000
NRC	0.18	0.54	0.83	0.81

Fire Fighting

The Polysorb Acoustic Wall Panel offers robust fire performance and does not generate any toxic gases on combustion.

Test Item	Standard	Test Result
		No.1	No.2	No.3
Performance test of flame-proof	Time of balanced flame (sec) Within 10	0	0	0
	Advance time (sec) Within 30	0	0	0
	Carbonization (cm2) Within 50	32.3	34.5	37.4 area
	Carbonization length (cm) Within 20	6.3	6.4	6.4
