FOAM STOPTM MELAMINE FOAMS

FOAM STOPTM Melamine foam is a foam-like material consisting of a formaldehyde-melamine-sodium bisulfite copolymer. Meaning it is the fusion different components at high temperatures and pressure.

The process of its manufacturing makes it perfect for using as an ideal acoustic foam.The foam has the ability to absorb higher amount of sound presence along with better thermal insulation with negligible weight.

PLAIN (FLAT)
Foam

PYRAMID
Foam

EGGCRATE
Foam

CYLINDRICAL
Foam

BASSTRAP
Foam

Uses of FOAM STOPTM Soundwave


  • For better acoustic and soundproofing solutions
  • Enhancement of looks and style
  • Thermal and fire resistant insulation
  • Sound absorption
  • Ventilation as well as HVAC systems
  • Manufacturing of vehicles including aerospace
  • Busses, utility vehicles, rails, ships, aircrafts, etc.
  • Fire resistance solution
  • Thermal insulation
  • Soundproofing


More Products

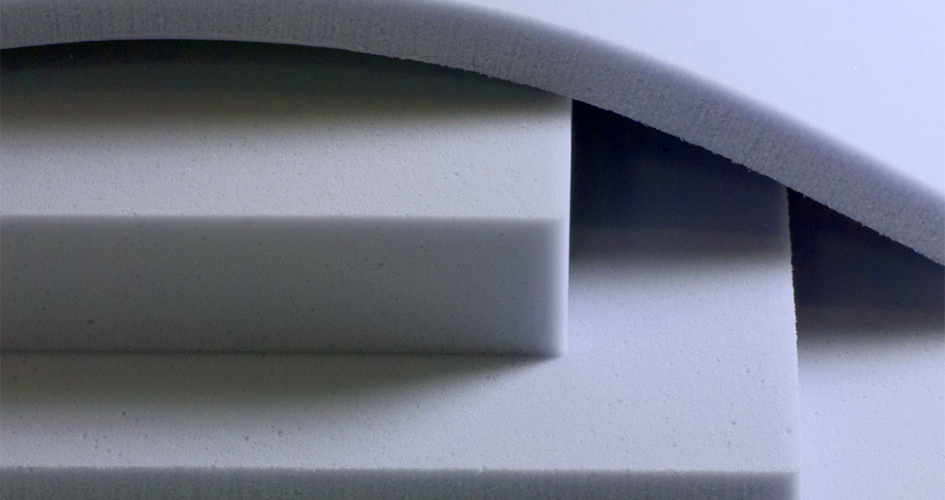

FOAM STOP™ Melamine Plain (Flat) features

  • Sound Absorption
  • Thermal Insulation
  • Fire Resistance
  • Chemical Resistance
  • Eco Friendly
  • Light Weight
  • Temperature endurance



Core Open Cell Polyurethane Acoustical Foam
Thickness (mm) 25mm, 50 mm & custom thicknesses are also available
Sizes (mm) 600mm x 600mm, 1200mm x 1200mm, 1000mm x 2000mm & also custom sizes
Acoustic Properties NRC 0.66 – 0.96 ( varies with thickness and mounting )
Density 1lbs/cub.ft and 2 lbs/cub.ft
Colours Charcoal Grey
Flamability Meets UL94 HF -1 Standard
Mounting type Type A
Installation ASI S.T.O.P Noise Acoustical Adhesive or any construction adhesive

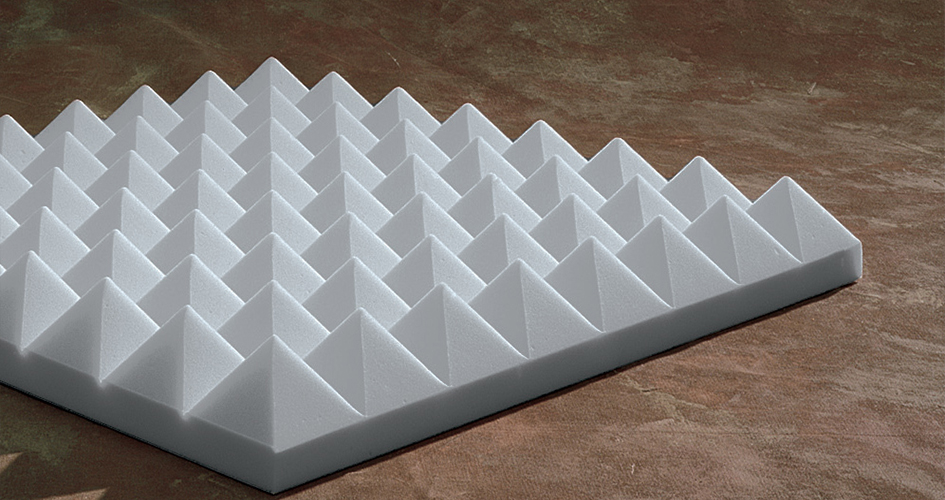

Pyramids are yet another one of our many acoustic foam panels. They are 2’x2′ squares of open cell class A fire rated melamine foam. These pyramid acoustic foam panels combine to absorb echoes within a space, collapsing perimeter background noise to deliver greater clarity to original sound.

FOAM STOP™ Melamine Pyramid features

  • Sound Absorption
  • Thermal Insulation
  • Fire Resistance
  • Chemical Resistance
  • Eco Friendly
  • Light Weight
  • Temperature endurance



Core Open Cell Polyurethane Acoustical Foam
Thickness (mm) 15mm, 20mm, 25mm, 35mm, 50 mm; custom thicknesses are also available
Sizes (mm) 600mm x 600mm, 1200mm x 1200mm, 1000mm x 2000mm & also custom sizes
Acoustic Properties NRC 0.42 – 0.96 ( varies with thickness and mounting )
Density 1lbs/cub.ft, 2lbs/cub.ft
Colours Charcoal Grey
Flamability Meets UL94 HF -1 Standard
Mounting type Type A
Installation ASI S.T.O.P Noise Acoustical Adhesive or any construction adhesive

Sound Absorption Coefficients

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
15mm 0.02 0.10 0.20 0.51 0.86 0.86 0.42
20mm 0.03 0.16 0.34 0.77 0.92 0.87 0.55
25mm 0.06 0.19 0.47 1.05 0.94 0.88 0.66
35mm 0.03 0.32 0.88 1.09 0.98 0.93 0.82
50mm 0.08 0.63 1.11 1.07 1.04 0.97 0.96


FOAM STOP: Datasheet

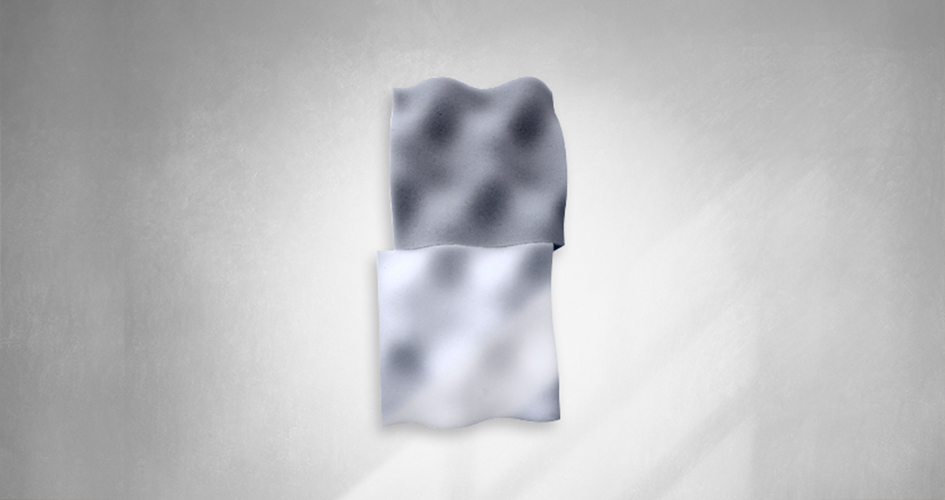

FOAM STOPTM eggcrate panel are yet another one of our many acoustic foam panels. They are 2’x2′ squares of open cell class A fire rated melamine foam. These acoustic foam panels combine to absorb echoes within a space, collapsing perimeter background noise to deliver greater clarity to original sound.

FOAM STOP™ Melamine Eggcrate features

  • Sound Absorption
  • Thermal Insulation
  • Fire Resistance
  • Chemical Resistance
  • Eco Friendly
  • Light Weight
  • Temperature endurance



Core Open Cell Polyurethane Acoustical Foam
Dimensions (mm) D200mm, custom sizes are also available
Length (mm) 950mm, custom sizes are also also available
Acoustic Properties NRC 0.55-0.90 ( varies with thickness and mounting )
Density 1lbs/cub.ft and 2 lbs/cub.ft
Colours Charcoal Grey
Flamability Meets UL94 HF -1 Standard
Mounting type Type A
Installation ASI S.T.O.P Noise Acoustical Adhesive or any construction adhesive

Sound Absorption Coefficients

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
0.8 cyl/m2 0.10 0.31 0.60 0.68 0.58 0.15 0.55
1.1 cyl/m2 0.15 0.40 0.80 1.00 1.00 1.00 0.80


FOAM STOP : Datasheet

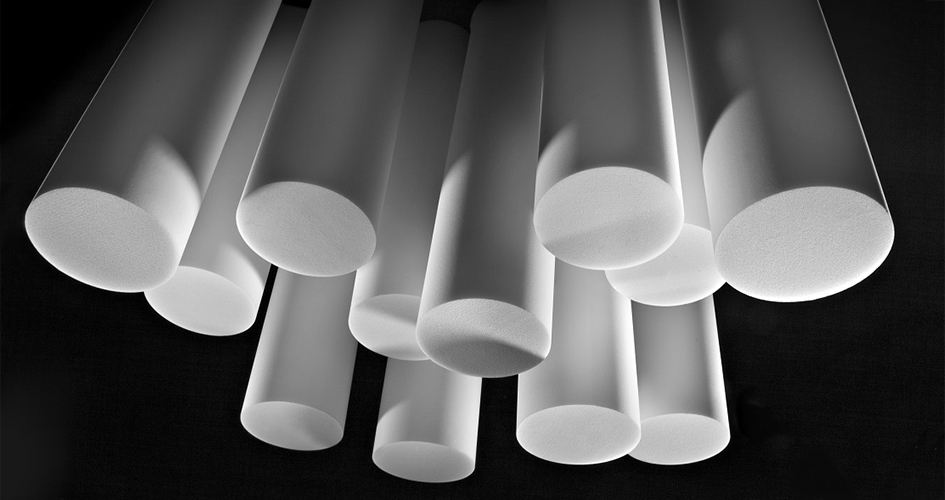

FOAM STOPTM cylinder is a sound absorber with a wide range of absorption (wide band), especially appreciated by architects and decorators, it is a highly versatile acoustic panel with an extraordinary acoustic performance. They can be installed in vertical or horizontal, glued or suspended, it is possible to combine different lengths and diameters creating an unique space with great aesthetic harmony.

FOAM STOP™ Melamine Cylindrical features

  • Sound Absorption
  • Thermal Insulation
  • Fire Resistance
  • Chemical Resistance
  • Eco Friendly
  • Light Weight
  • Temperature endurance

Product Details



Core Open Cell Polyurethane Acoustical Foam
Thickness (mm) Custom thickness
Sizes (mm) 300mm x 300mm x 600mm, 350mm x 300mm x 600mm & also custom sizes
Acoustic Properties NRC 0.75 ( varies with thicknesses and mounting )
Density 1lbs/cub.ft and 2 lbs/cub.ft
Colour Charcoal Grey
Flamability Meets UL94 HF -1 Standard
Mounting type Type A
Installation ASI S.T.O.P Noise Acoustical Adhesive or any construction adhesive

Sound Absorption Coefficients

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
BS-1 0.46 1.00 0.78 0.64 0.63 0.70 0.75
BS-2 0.90 0.84 0.80 0.64 0.62 0.70 0.75


FOAM STOP : Datasheet

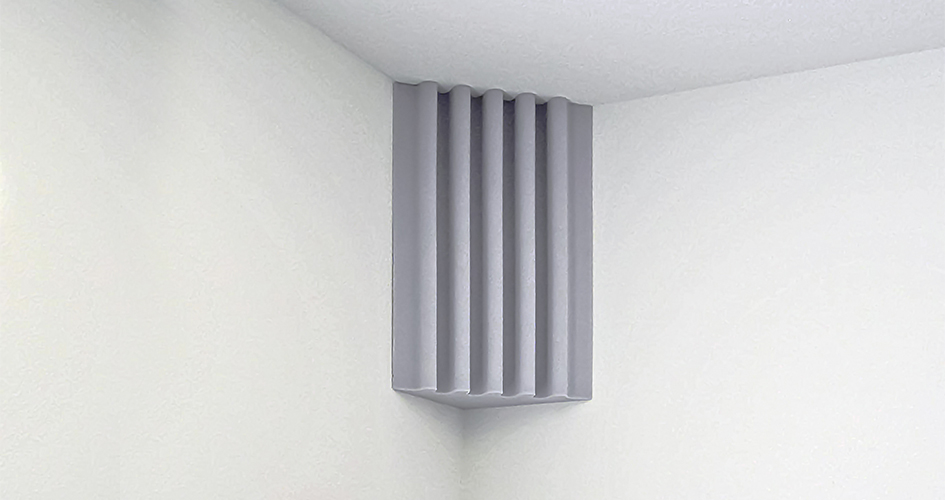

The unique trihedral geometry of our FOAM STOPTM Corner Bass Traps provides exceptional acoustical performance, maximizes installation and design versatility and sparks an immediate visual interest.

FOAM STOP™ Melamine Basstrap features

  • Sound Absorption
  • Thermal Insulation
  • Fire Resistance
  • Chemical Resistance
  • Eco Friendly
  • Light Weight
  • Temperature endurance

Card image cap

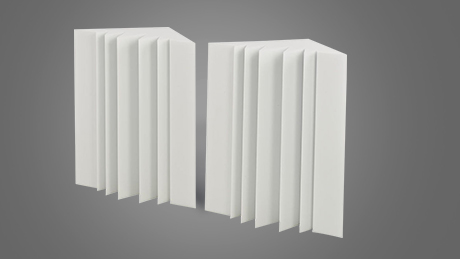

BASSTRAP - STRIPED

Card image cap

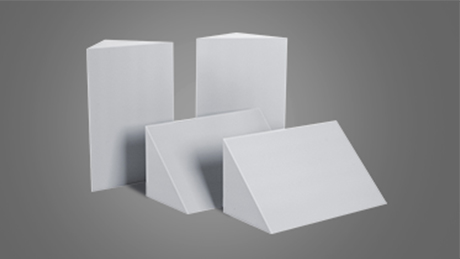

BASSTRAP - PLAIN




Core Open Cell Polyurethane Acoustical Foam
Thickness (mm) 35mm, 50mm ;custom thicknesses are also available
Sizes (mm) 600mm x 600mm, 1200mm x 1200mm, 1000mm x 2000mm & also custom sizes
Acoustic Properties NRC 0.82 – 0.96 ( varies with thickness and mounting )
Density 1lbs/cub.ft, 2 lbs/cub.ft
Colours Charcoal Grey
Flamability Meets UL94 HF -1 Standard
Mounting type Type A
Installation ASI S.T.O.P Noise Acoustical Adhesive or any construction adhesive

Sound Absorption Coefficients

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
35mm 0.03 0.32 0.88 1.09 0.98 0.93 0.82
50mm 0.08 0.63 1.11 1.07 1.04 0.97 0.96


FOAM STOP : Datasheet
